Product description:

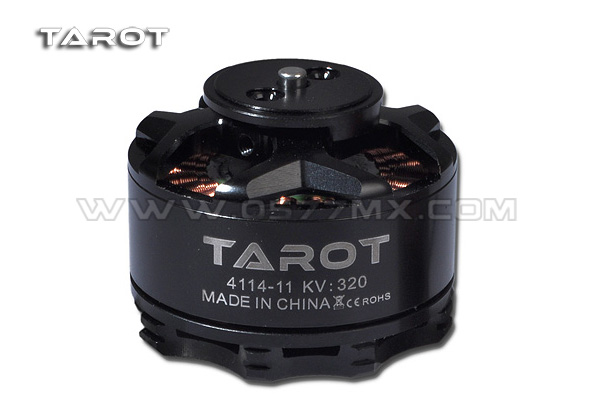

 4114/320KV efficient multi-axis brushless motor designed for multi-rotor aircraft design, using high precision CNC machined smooth Seamless appearance flat table, excellent balance.  Efficient turbofan superstructure of the new design, powerful airflow, rotor high-magnetic material NdFeB refining stator using high strength epoxy pressure reinforcement to protect the high temperature, high flux external rotor motor through a special balance correction, improved vibration problems caused by poor the ordinary external rotor motor balance, high-speed alloy steel motor shaft.  The upper and lower motor cover with a large-sized high-speed precision bearings with low friction torque, power loss, impact resistance, instant high-speed radial support.  4114/KV 320 new generation of brushless motor has been through a rigorous dynamic, static magnetic field characteristics, magnetic high temperature demagnetization loss, exercise vibration, noise, load and performance engineering and technical feasibility studies.  Continuation of inherited the TAROT brushless motor: long life, high efficiency, low power consumption, low noise, control the stability of the superior characteristics.

 Product parameters:
Motor peripheral diameter: 46.00mm
Stator diameter: 41.0 mm
Stator end thickness: 14.0 mm
Stator end: 24N
Motor number of poles: 22P
Diameter: 0.31mm
Per volt speed: 320 RPM / Volt
22.2V empty annexed current: 0.5 Amps
Motor internal resistance: 126 mΩ
Motor Weight: 148 Grams
Gear shaft mounting diameter: ¢ 4.0 mm
Motor Length: 32.0 mm
Motor shaft total length: 37.0 mm

 Specifications:
M2.5 × 6 stairs screw × 3
4114-11KV320 × 1
