Product Description: 6061T6 aluminum CNC precision machining, for six-axis or eight-axis aircraft 25mm carbon tube DIY rack (T810/T960/TL

100B01) components, with the ESC installation position. ESC carbon fiber board import Toray the 3K pure carbon fiber woven by high temperature and high pressure prefabricated CNC precision plus

Workers, 2.0 thickness of pure carbon matte twill carbon fiber quality beyond conventional commercially available products. Overall performance beyond national standards

Requirements on the performance indicators of the level of the high strength of the carbon fiber strip plate. The overall design of the lightweight two-color metal parts with a strong

Perspective of impact, the body of the air to provide a good visual direction. Motor mounting hole spacing: 16MM/19MM/25MM /

Installation 27MM equilateral triangle.

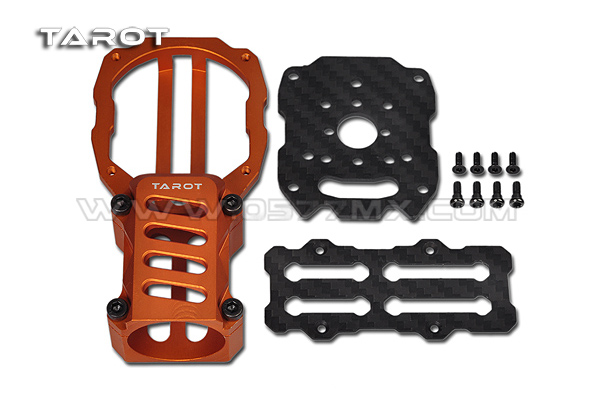

Specifications: pure carbon fiber ESC tabs × 1 (62 × 29.3 × 1.3MM) 2.2G

Pure carbon fiber motor adapter plate × 1 (52 × 45 × 2.0MM) 5.2g

Metal 25mm Motor Mount × 1 (92.5 × 48 × 27MM) 36.0G

M3 × 10MM Cup Head Hexagon collar screw x 4

M2.5 × 6.5 Allen stepped screw × 4

M2 × 6mm flat head socket head cap screws × 4
